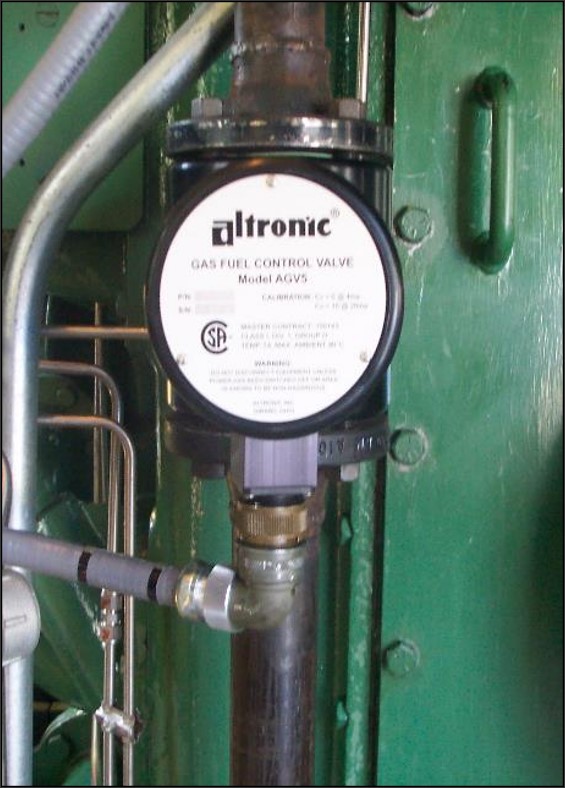

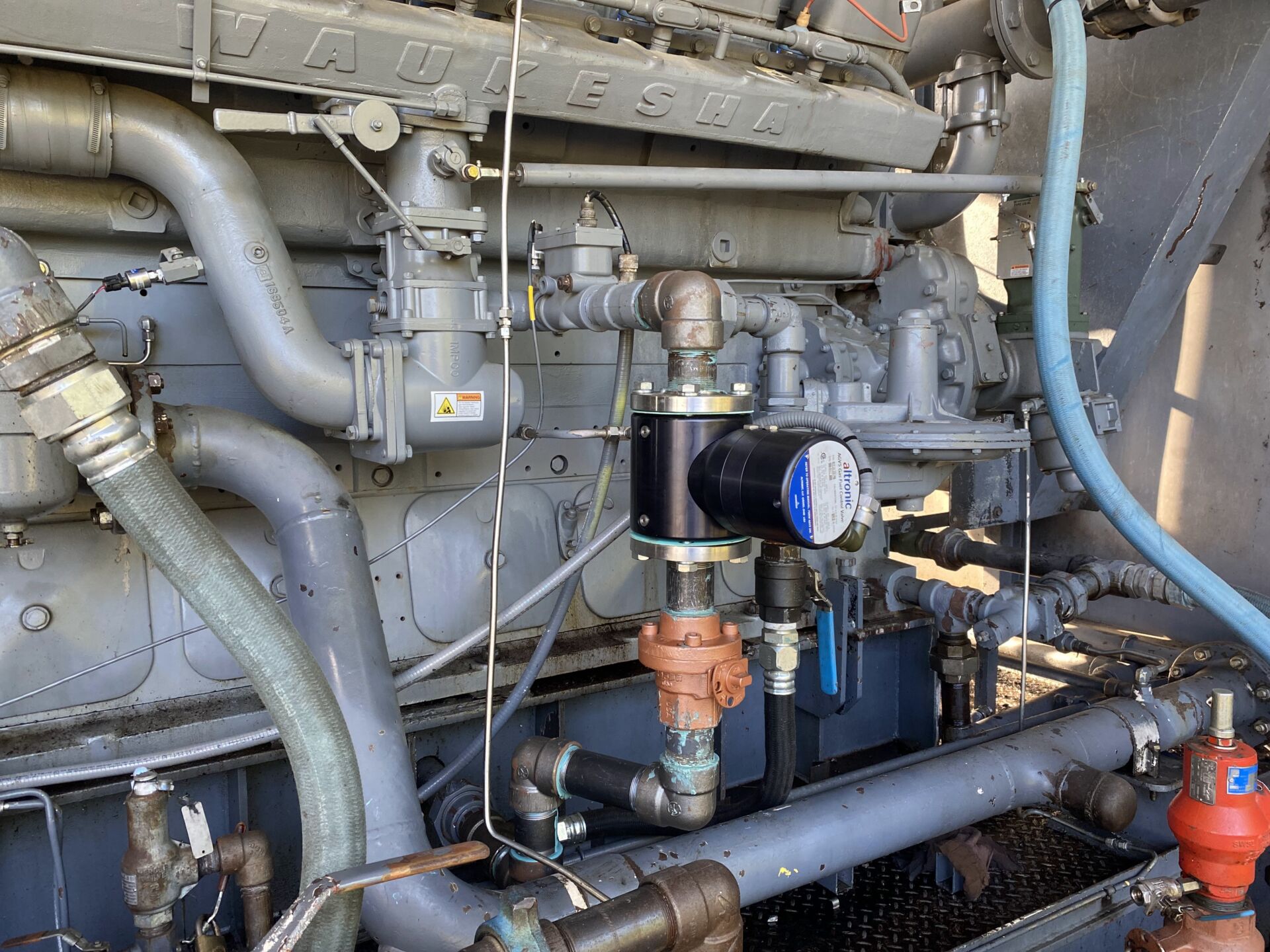

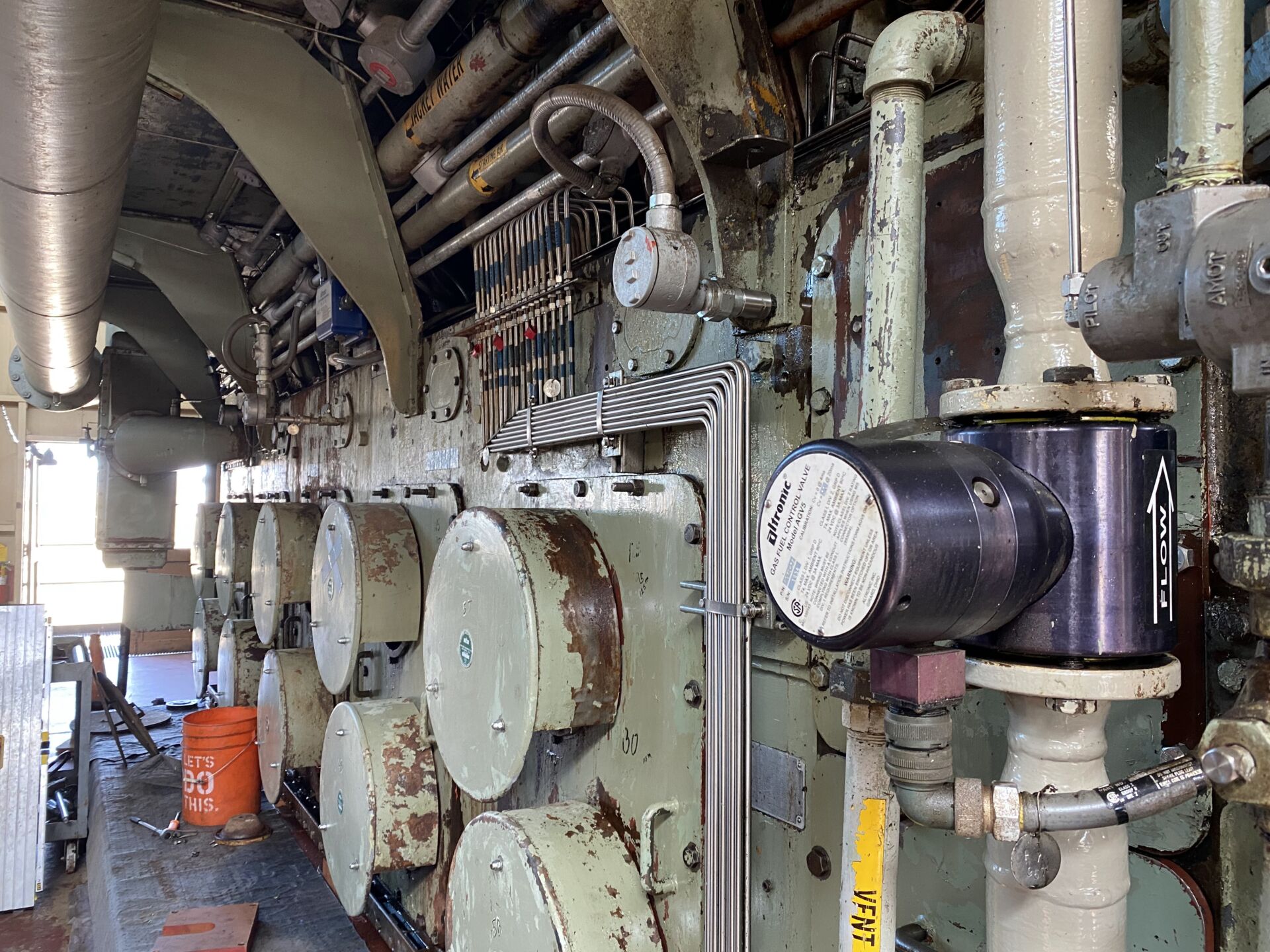

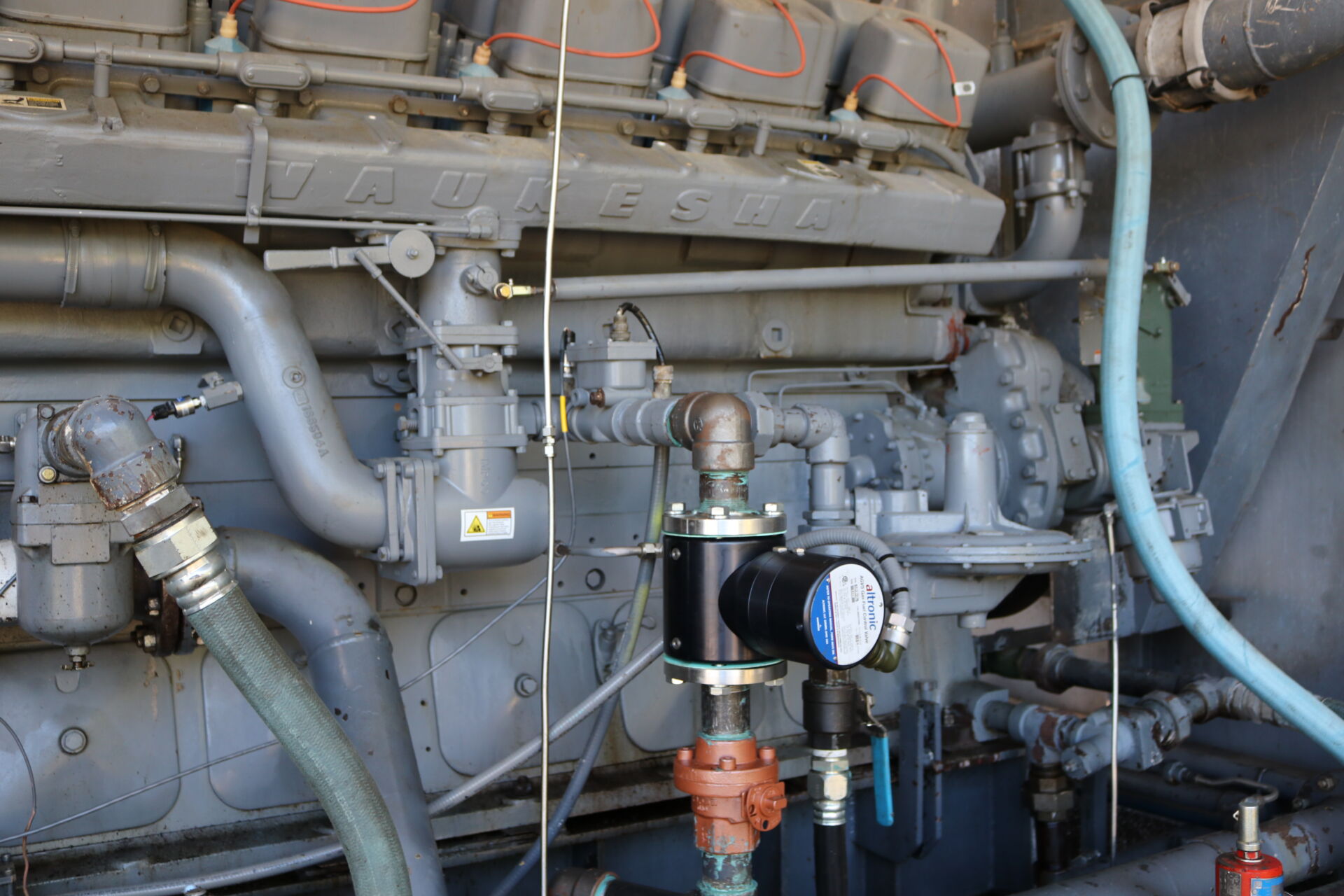

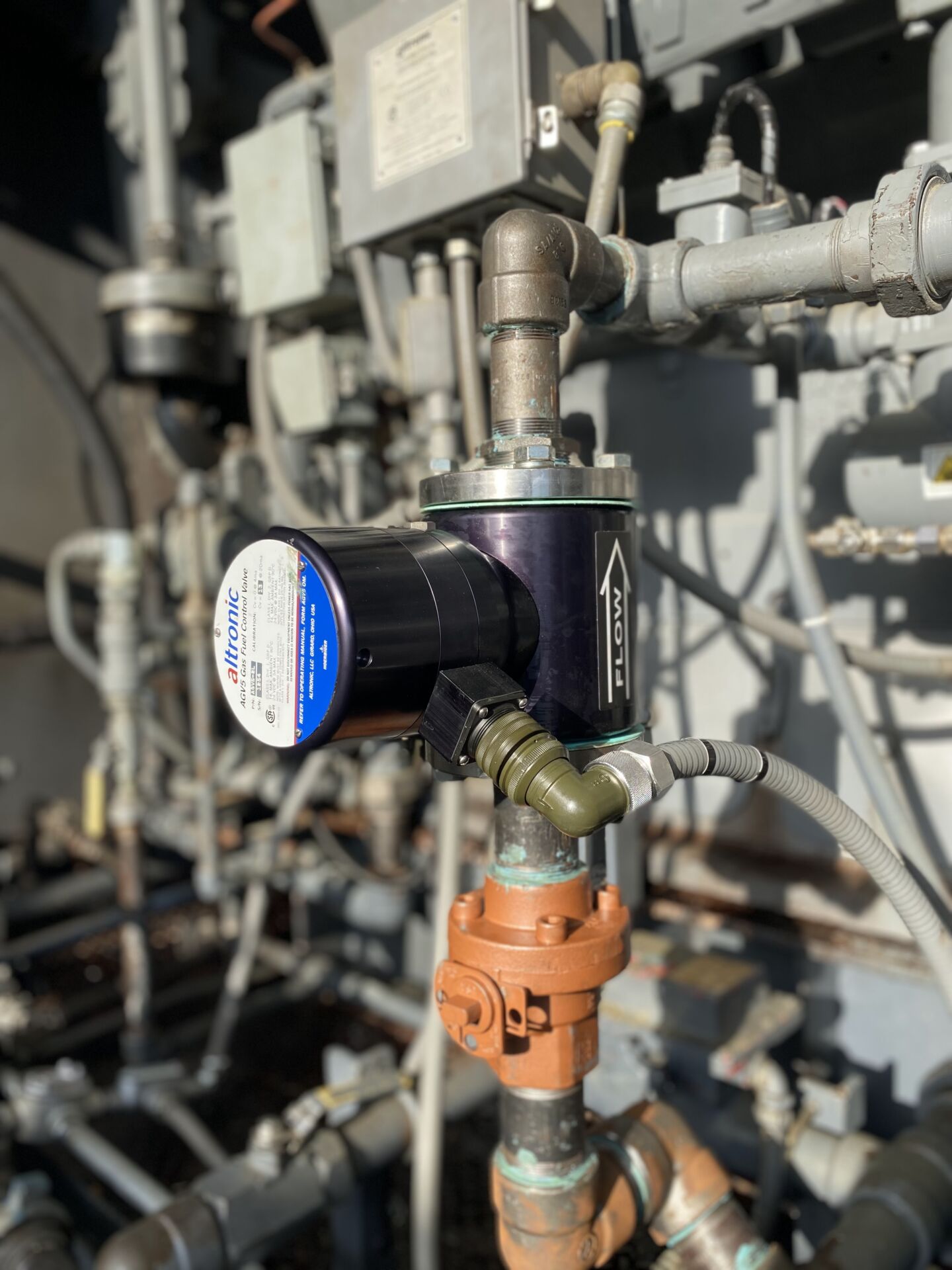

The AGV5 is a single-stage, electronically-actuated, balanced poppet fuel valve designed to act as an actuation device for a supervisory (typically PLC-based) speed control system. The AGV5 can also be used as an air-fuel ratio control valve or a variable pressure regulator in a variety of applications. All valve control is derived from an industry-standard 4-20mA output signal generated by the governing controller. As a result, all governing logic, RPM and pressure setpoints, ramps, and timers are defined within the control system and are executed independently by the AGV5. Two models are available (standard and extra-large) to accommodate the fuel flow needs of engines up to 10,000 horsepower.
Eliminates mechanical fuel valve, actuator and linkages
Allows improved starting and speed stability
Regulates gas flow in response to input signal
Servo-valve with position feedback and Integrated Pressure Sensor
Feeds back valve position and fuel manifold pressure
Fail safe design – spring-loaded closed in case of power failure
CSA-certified for Class I, Divisions 1 and 2, Group D hazardous areas
